65 m3 LPG Transporter Tanks
| GENERAL NAME OF THE PRODUCT | SEMITRAILER LPG TRANSPORTATION TANK |
| PURPOSE OF USE | TRANSPORTATION FROM STATIONS |
| AUTOGAS STATIONS AND BULK GAS TANK LPG SUPPLY | |
| CAPASITY | 36 m3 … 70 m3 |
| MANUFACTURING STANDARDS | ADR, EN 12493, EN 14025 |
| MATERIAL | P355 GH/NL1, NL2 |
| P460 NH/NL1/NL2 | |
| DESIGN PRESURE | ADR, EN 12493, EN 14025 |
| CUSTOMER DEMAND | |
| DESIGN TEMPERATURE RANGE | : -40 ‘C … +70’C |
| LOADING AND DISCHARGE SYSTEM | NATURAL |
| EX PROOF ELOECTRONIC ENGINE ACTUATION | |
| HYDROLIC ENGINE ACTUATION | |
| SHAFT DRIVE-PNEUMATIC SYSTEM | |
| WELDING METHOD | 121 (SAW) |
| 111(SMAW) | |
| 135 (CMAW) | |
| 141 (GTAW) |
| FRAME | HALF FRAME / WITH BOLT (CAN BE REMOVED) |
| HALF FRAME / WELDED (STABLE) | |

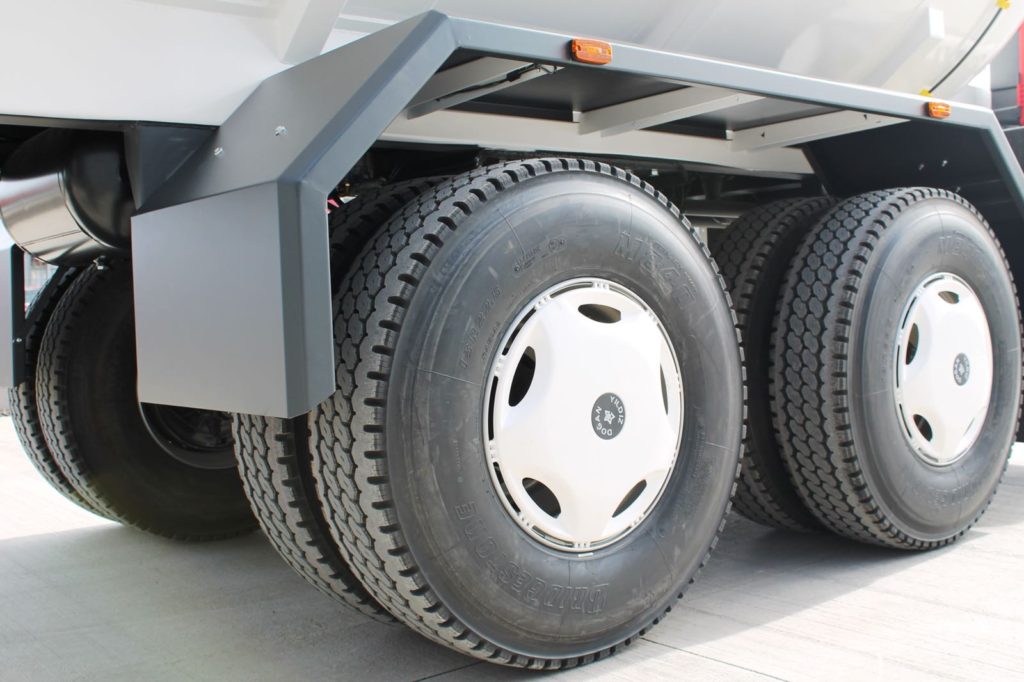

| AXLE GROUP | MECHANIC SYSTEM |
| AIR SUSPENDED SYSTEM |
| BRAND OF BREAK SYSTEM | WABCO |
| KNORR | |
| BREAK SYSTEM | ABS |
| DISC OR DRUM BREAK SYSTEM | |
| ELECTRONIC SYSTEM | WITH ADR |
| SABA-ASPÖCK-HELLA-SERTPLAST |
| KING PIN | JOST-2” |
| BPW2” | |
| MECHANIC STAND | JOST-24 TON |
| BPW-24 TON | |
| CONTROL | SELF |
| INDEPENDENT APPROVED ORGANIZATION | |
| SANDBLASTING | SA 2 ½ |
| PAINT | JOTUN, HEMPEL, CARBOLINE |
| APPLY IN TEMPRETURE AND HUMADITY MEASURED DRYING OVENS |
| TRACEABILITY OF ALL OPERATIONS DURING MANUFACTURE AND DOCUMENTATION IN TECHNICAL FILE | |
| TANK CERTIFICATIONS (ADR, PI, TPED) | |
| PRODUCT CERTIFICATIONS (3,1 etc.) | |
| MANUFACTURER CERTIFICATIONS | |
| HYDROSTATIC TEST CERTIFICATION | |
| TECHNICAL FILE | PNEUMATIC TEST CERTIFICATION |
| WPS / WPQR | |
| WELDER CERTIFICATIONS | |
| NDT (RT, UT, MT, PT, VT, LAMINATION) | |
| DISTORTION / MECHANIC TESTS | |
| (BENDING TEST, TENSION TEST, MACRO OBSERVING, NICK DAMAGE TEST, BRINELL SERTIC) | |
| GRAFIC OF HOGGING CALORIFIC OPERATION | |
| PAINT TESTS AND TICKNESS MEASUREMENT |
| ACCESSORY | FIRE EXTINGUISHER CUPBOARD |
| PLASTIC OR METAL FENDER | |
| PLASTIC CHOCK | |
| FOOD AND UTENSIL CUPBOARD |

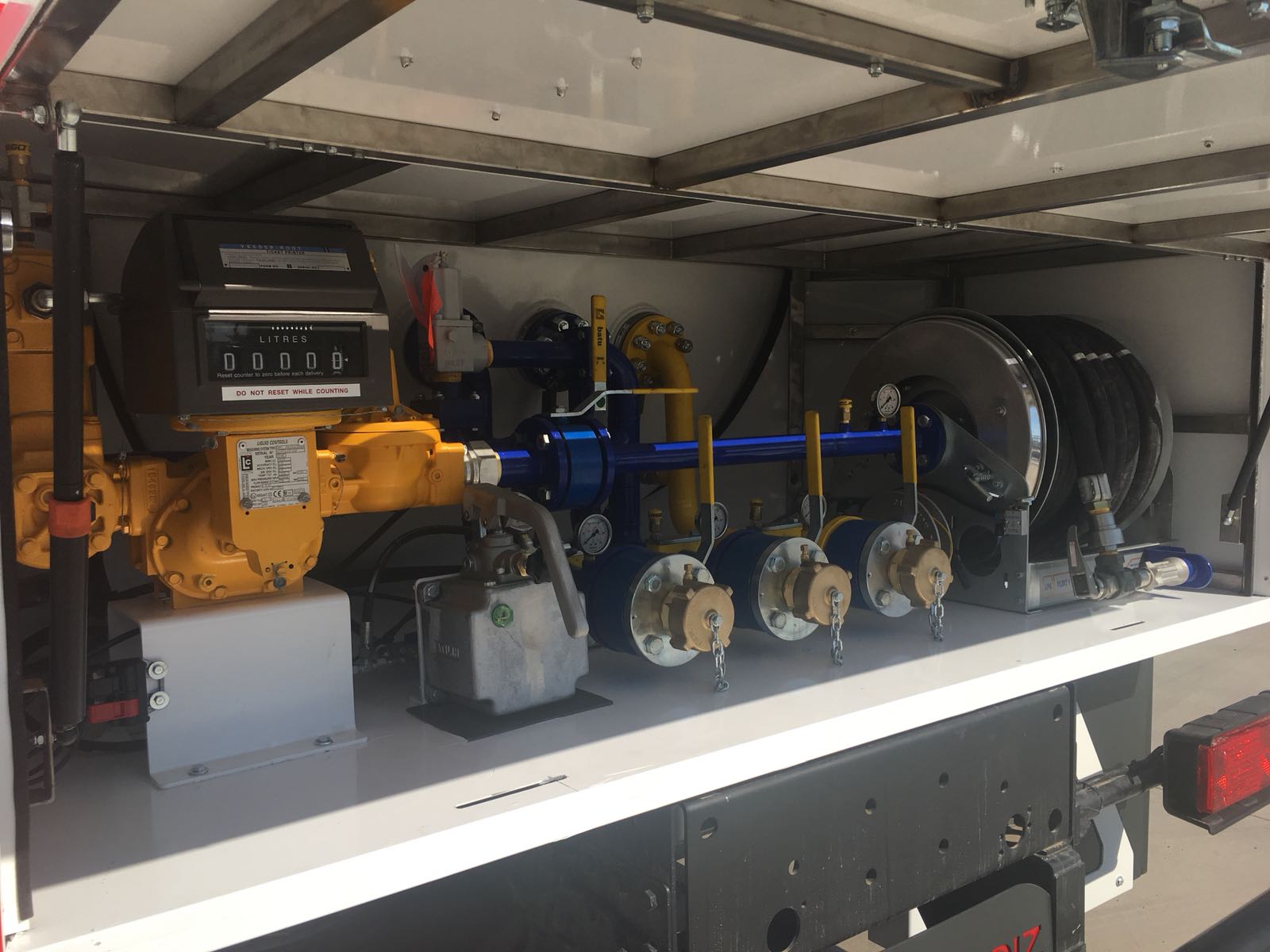

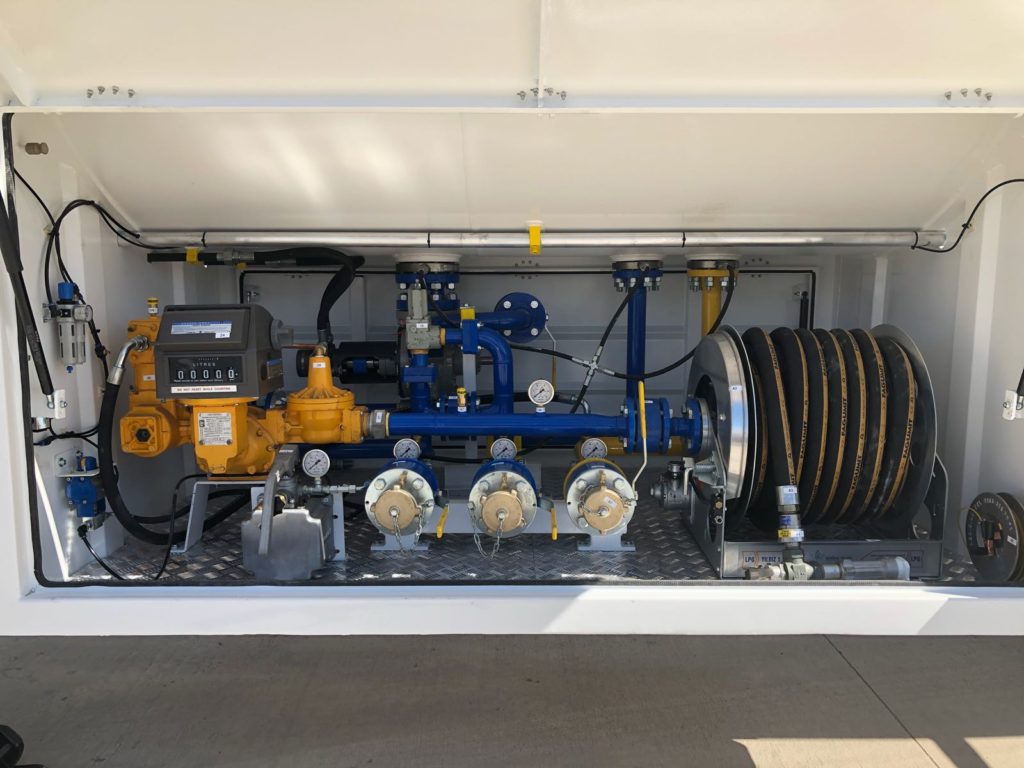

| OPTIONS | SYSTEM AND AUTOMATION WITH LPG POMP |
| SYSTEM AND AUTOMATION WITH LPG COUNTER | |

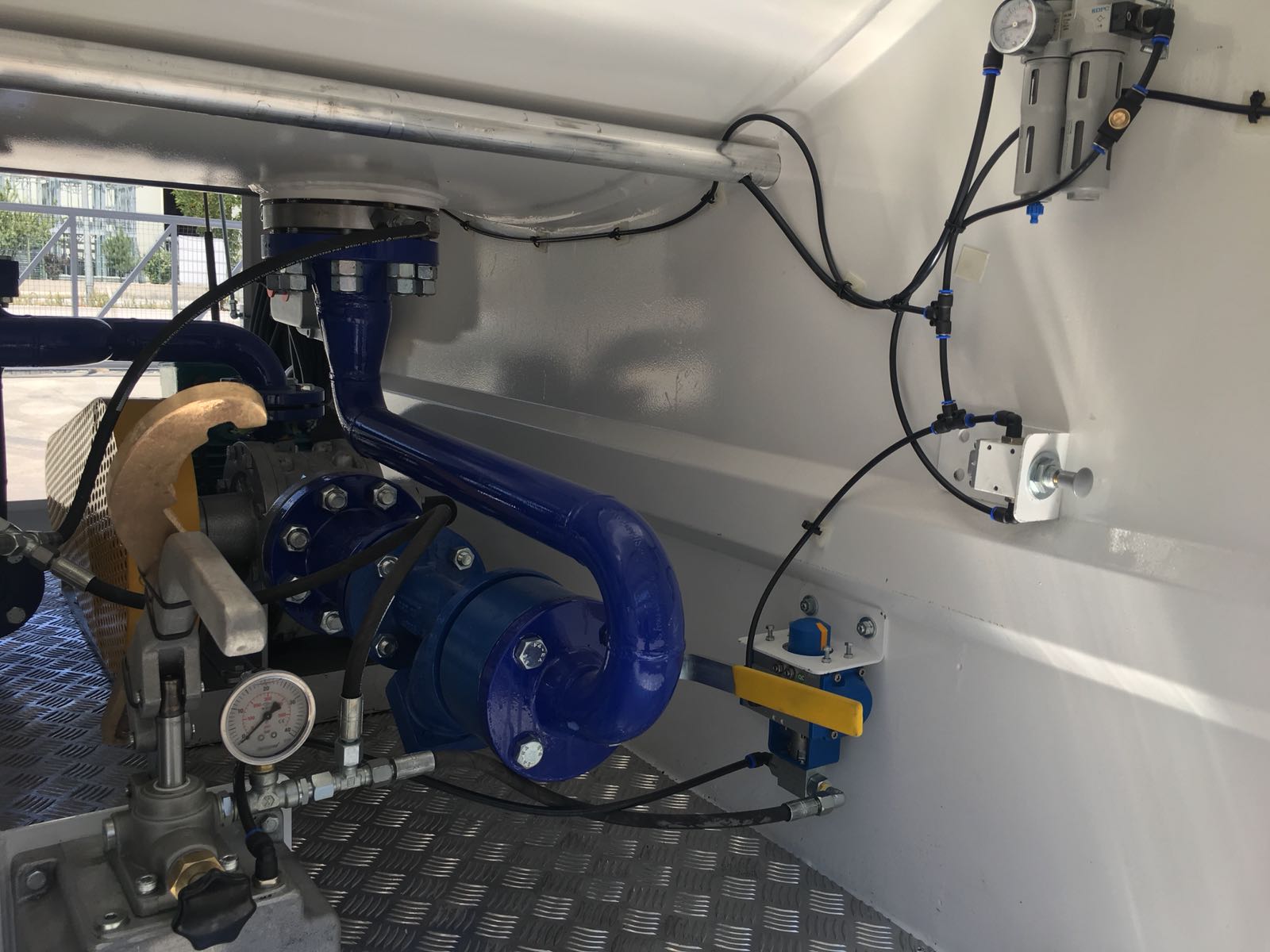

| PNEUMATIC SYSTEM AND AUTOMATION | |
| TOPPLED VEHICLE PRODUCT RECEIVING VALVES | |
| ANTI-TOW | |
| BASE – REMOTE CONTROL SYSTEM | |
| AWNING | |
| VEHICLE LPG VOLUME MEASURING AND PURSUIT. OPPORTUNITY |
