RED JACKET SUBMERSIBLE PUMP 2

Red Jacket delivers faster, more reliable fuel flow for the lowest cost of ownership. The Red Jacket is a fixed speed submersible turbine pump that optimizes fuel flow to your dispensers. Its motor performance delivers higher flow rates than any other motor in the industry. It features Red Jacket’s advanced packer manifold design, making it the industry’s easiest and safest STP to install and service. Available in ¾HP to 2HP configurations and fixed or variable Quick Set lengths.

Key features:

• Superior motor design delivers higher flow rates, lower power consumption, and increased safety and reliability.

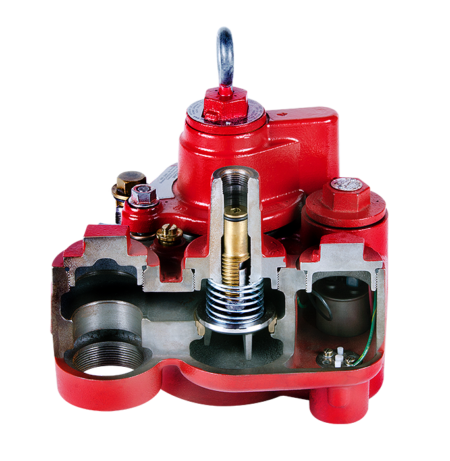

• Advanced packer manifold delivers automatic fuel drain, electrical disconnect, and reduced lifting force for increased site and environmental safety.
• Built-in isolated contractor’s box for quicker and safer installation.
• Automatic electrical disconnect offers increased safety.
• Check valve and manifold design for easier line tests & servicing.
• AG Model available for Ethanol or Methanol concentrations up to 100%.

Designed for Hazardous Location:

• Class 1, Group D atmospheres

Quick-Set Adjustment Range:

• RJ 1 = 74.5″ – 105″*
• RJ 2 = 104.4″ – 165″
• RJ 3 = 164″ – 225″
• *Assumes 1.5 HP

Agency Listing (See price book and manual for agency listings by model):

• UL
• cUL
• ATEX EN15268 Certified

4″ Horsepowers Available:
3/4 HP, 60 HZ, 1-phase

• 3/4 HP, 50 HZ, 1-phase or 3-phase
• 1 1/2 HP, 60 HZ, 1-phase
• 1 1/2 HP, 50 HZ, 1-phase or 3-phase
• X3, 60 HZ, 1-phase
• X4, 50 HZ, 1-phase or 3-phase
• 2 HP, 60 HZ, 1-phase

Siphon Ports:

• 2 available, 1/4″ NPT. Vacuums
• generated up to 25 in Hg.

Fuel Compatibility:

• Diesel
• 100% Gasoline
• 80% Gasoline with 20% TAME, ETBE,
• or MTBE
• 0-100% Ethanol
• 0-100% Methanol
• Line Pressure Port:
• 1 Available. 1/4″ NPT

Vent Port:

• 1 Available. 1/4″ NPT
